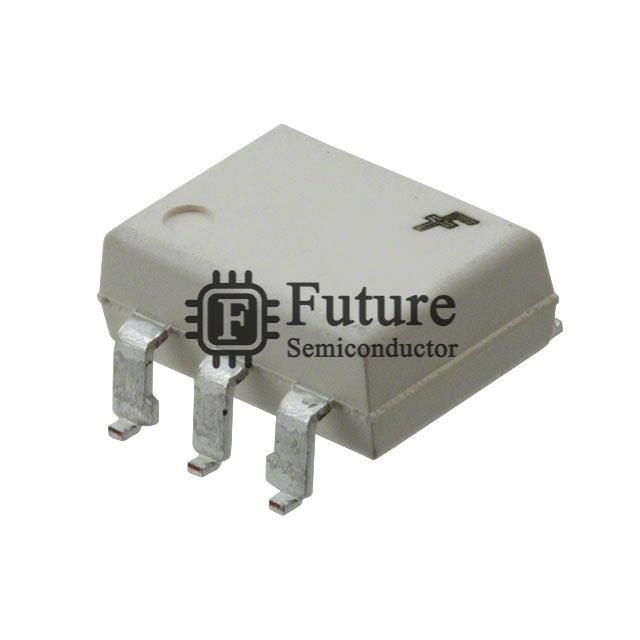

Home / Products / Isolators / Optoisolators - Logic Output / H11N1SVM
Manufacturer Part Number | H11N1SVM |
---|---|
Future Part Number | FT-H11N1SVM |
SPQ / MOQ | Contact Us |
Packing Material | Reel/Tray/Tube/Others |
Series | - |
H11N1SVM Status (Lifecycle) | In Stock |
Part Status | Active |
Number of Channels | 1 |
Inputs - Side 1/Side 2 | 1/0 |
Voltage - Isolation | 4170Vrms |
Common Mode Transient Immunity (Min) | - |
Input Type | DC |
Output Type | Open Collector |
Current - Output / Channel | 50mA |
Data Rate | 5MHz |
Propagation Delay tpLH / tpHL (Max) | 330ns, 330ns |
Rise / Fall Time (Typ) | 7.5ns, 12ns |
Voltage - Forward (Vf) (Typ) | 1.4V |
Current - DC Forward (If) (Max) | 30mA |
Voltage - Supply | 4V ~ 15V |
Operating Temperature | -40°C ~ 85°C |
Mounting Type | Surface Mount |
Package / Case | 6-SMD, Gull Wing |
Supplier Device Package | 6-SMD |
Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
H11N1SVM Weight | Contact Us |
Replacement Part Number | H11N1SVM-FT |
