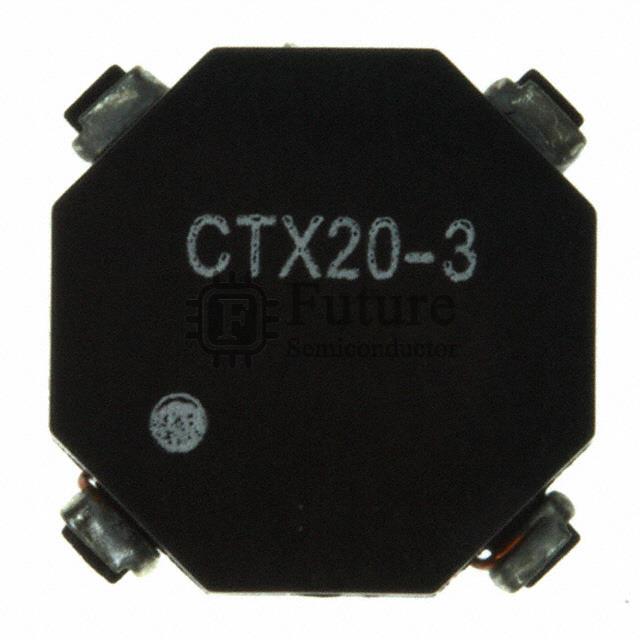

Eaton - Electronics Division CTX20-3-R

Name: CTX20-3-R
Brand: Eaton - Electronics Division
SKU: CTX20-3-R
Price: 2.387 USD
Availability: InStock
Rating: 4.6 (405 reviews)

MFG Part Number: CTX20-3-R

Available Quantity: 29110 Pieces

Reference Price: USD 2.387

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Eaton - Electronics Division

Brief Description: OCTA-PAC® INDUCT ARRAY 2 COIL 20.18UH SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Arrays, Signal Transformers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: CTX20-3-R.pdf

Request Quotation for CTX20-3-R

Company Name

Contact Person

Phone Number

Address

Email

Message

CTX20-3-R Specifications

Manufacturer Part Number	CTX20-3-R
Future Part Number	FT-CTX20-3-R
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	OCTA-PAC®
CTX20-3-R Status (Lifecycle)	In Stock
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	20.18µH
Inductance - Connected In Series	80.74µH
Tolerance	±20%
Current Rating - Parallel	1.5A
Current Rating - Series	750mA
Current Saturation - Parallel	-
Current Saturation - Series	-
DC Resistance (DCR) - Parallel	78 mOhm Max
DC Resistance (DCR) - Series	312 mOhm Max
Shielding	Unshielded
Ratings	-
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.550" L x 0.550" W (13.97mm x 13.97mm)
Height	0.190" (4.83mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
CTX20-3-R Weight	Contact Us
Replacement Part Number	CTX20-3-R-FT
