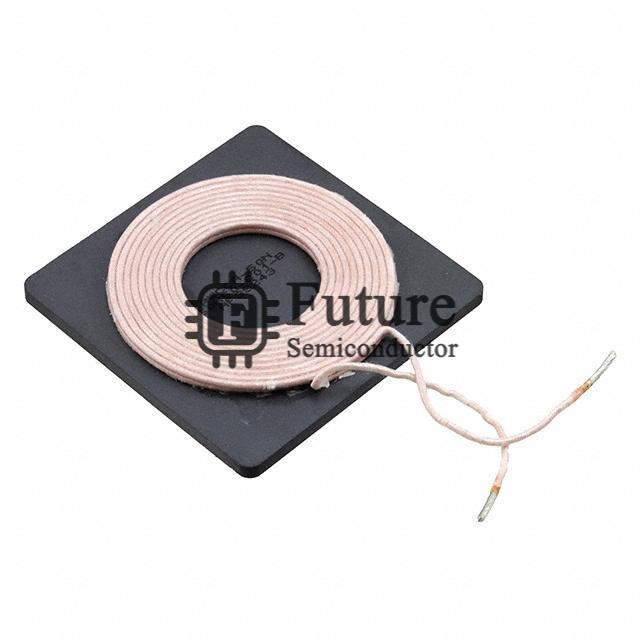

Home / Products / Inductors, Coils, Chokes / Wireless Charging Coils / AWCCA-50N50H50-C01-B
Manufacturer Part Number | AWCCA-50N50H50-C01-B |
---|---|
Future Part Number | FT-AWCCA-50N50H50-C01-B |
SPQ / MOQ | Contact Us |
Packing Material | Reel/Tray/Tube/Others |
Series | AWCCA-50N50 |
AWCCA-50N50H50-C01-B Status (Lifecycle) | In Stock |
Part Status | Active |
Function | Receiver, Transmitter |
Type | 1 Coil, 1 Layer |
Inductance | 24µH |
Tolerance | ±10% |
DC Resistance (DCR) | 72 mOhm |
Q @ Freq | 163 @ 100kHz |
Current Rating | 5.7A |
Current - Saturation | 30A |
Frequency - Self Resonant | 2.8MHz |
Operating Temperature | -25°C ~ 85°C |
Size / Dimension | 1.96" L x 1.96" W x 0.19" H (50.0mm x 50.0mm x 5.0mm) |
Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
AWCCA-50N50H50-C01-B Weight | Contact Us |
Replacement Part Number | AWCCA-50N50H50-C01-B-FT |
